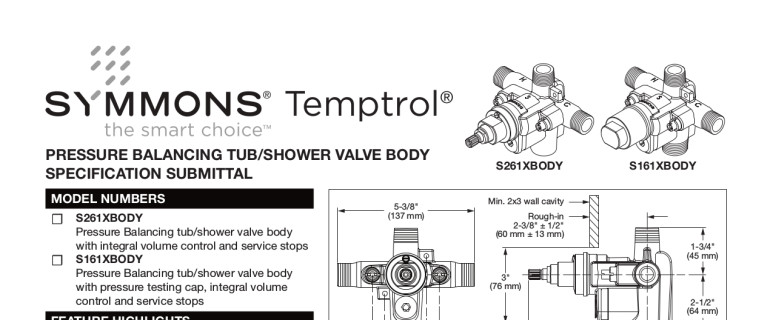

Valve

Temptrol Body

  • Model S161XCPBRBODY

  • Temptrol pressure balancing shower valve body with volume control
  • Adjustable stop screw to limit handle turn

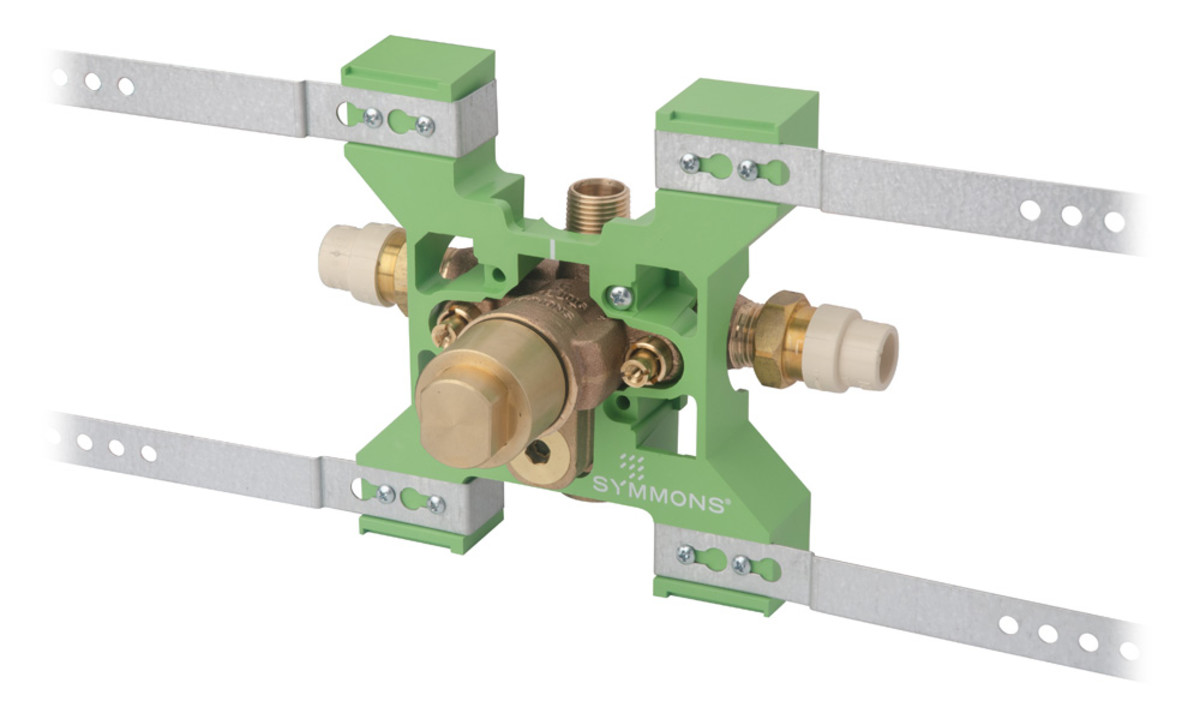

  • Rapid install bracket

ReadyStock™

Price:

$ 154.00 USD

Where to buy

Temptrol® Collection

The legendary Temptrol pressure-balancing, anti-scald mixing valve is the heart of every Symmons tub and shower system, and it is the benchmark by which all others are judged. Each valve is constructed of solid brass, bronze, and stainless steel, and features an adjustable piston that instantly and continually balances the hot and cold water pressure as demand fluctuates in the plumbing system. Now Temptrol is even easier to install with the Rapid Install bracket system for virtually any rough-in situation, and factory-installed options for various water supply connection methods.

  • Plumber Recommended

  • Made in the USA

  • Built Without Compromise

Related Products

THE TEMPTROL VALVE

FAQs

My Temptrol® shower valve recently started dripping, can it be repaired?

Yes, easily! Simply replace the hot and cold washer parts using a genuine Symmons TA-9 Washer Repair Kit. It has everything you’ll need, including installation instructions. Don’t forget to shut off the water first!

My Temptrol® shower valve suddenly only delivers all hot or all cold water. What’s wrong?

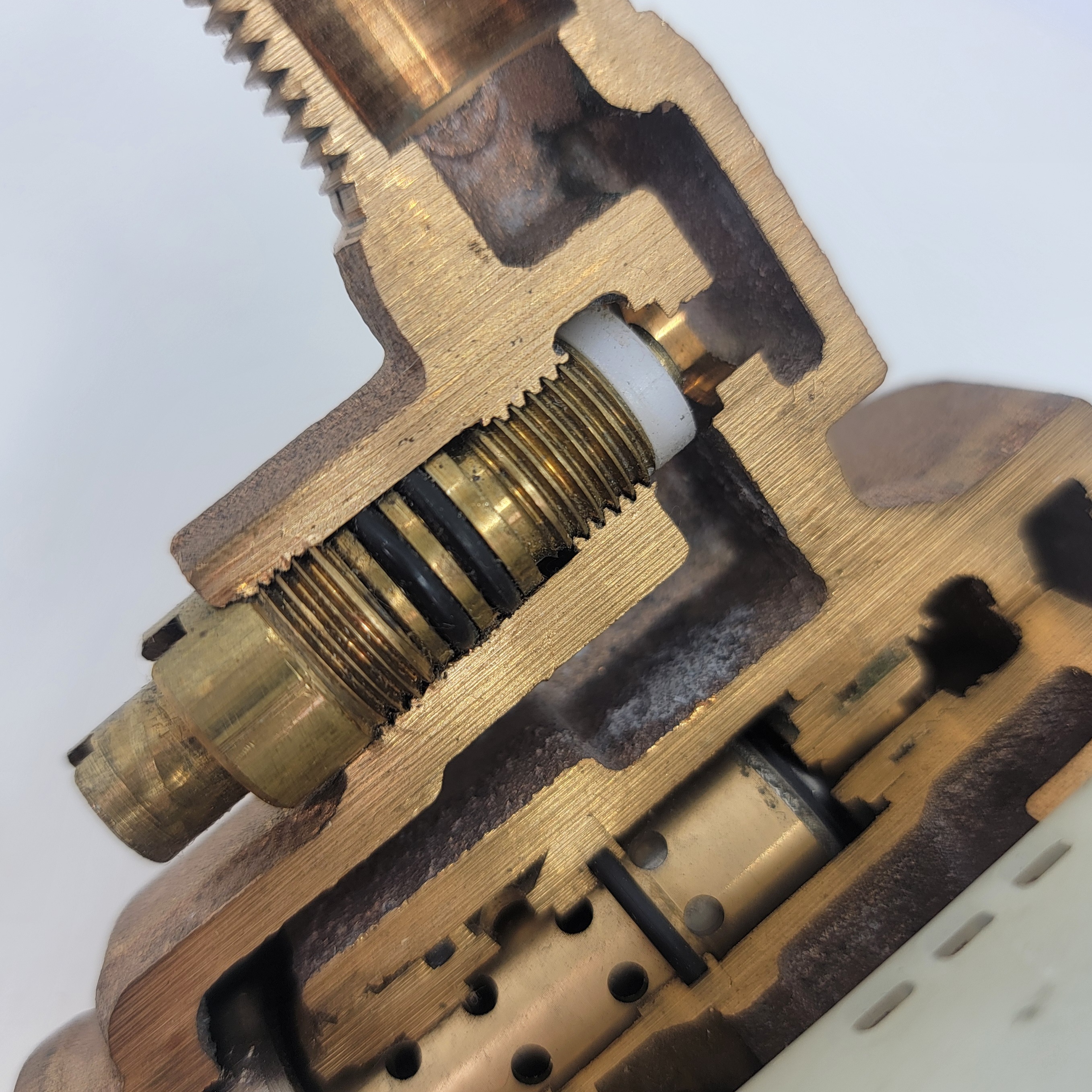

In this case, the pressure-balancing piston that moves inside the main TA-10 spindle has become jammed with some sort of debris, like minerals or pieces of dirt or solder. A good first step is to open the valve to the halfway position, remove the handle, and firmly tap end of spindle with a plastic or wooden hammer.

If the issue remains, shut the water off and remove the spindle assembly from valve, and then tap the handle end against a solid object to free the piston. Then, shake the spindle–you should hear the distinct “click-clack” of the piston moving freely.

If the piston appears to be blocked by minerals, soak the entire piston assembly in household white vinegar. If possible, flush or clean the inside of the valve body before reassembly.

If these steps do not solve the problem, replace the spindle with a new TA-10 spindle.

How do I take my Temptrol® valve apart to repair it? I can't seem to get the Temptrol® valve apart to repair it, the cap won't come off.

Click here for instructions.

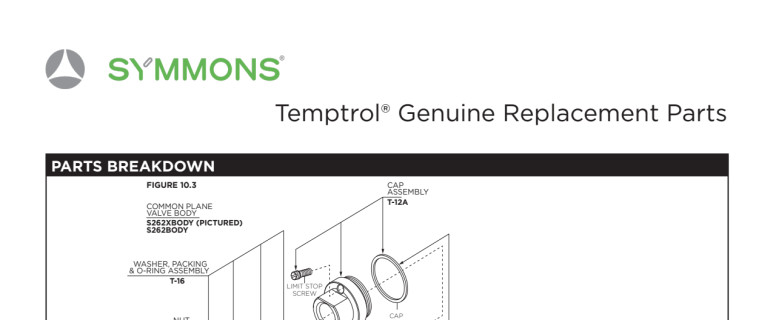

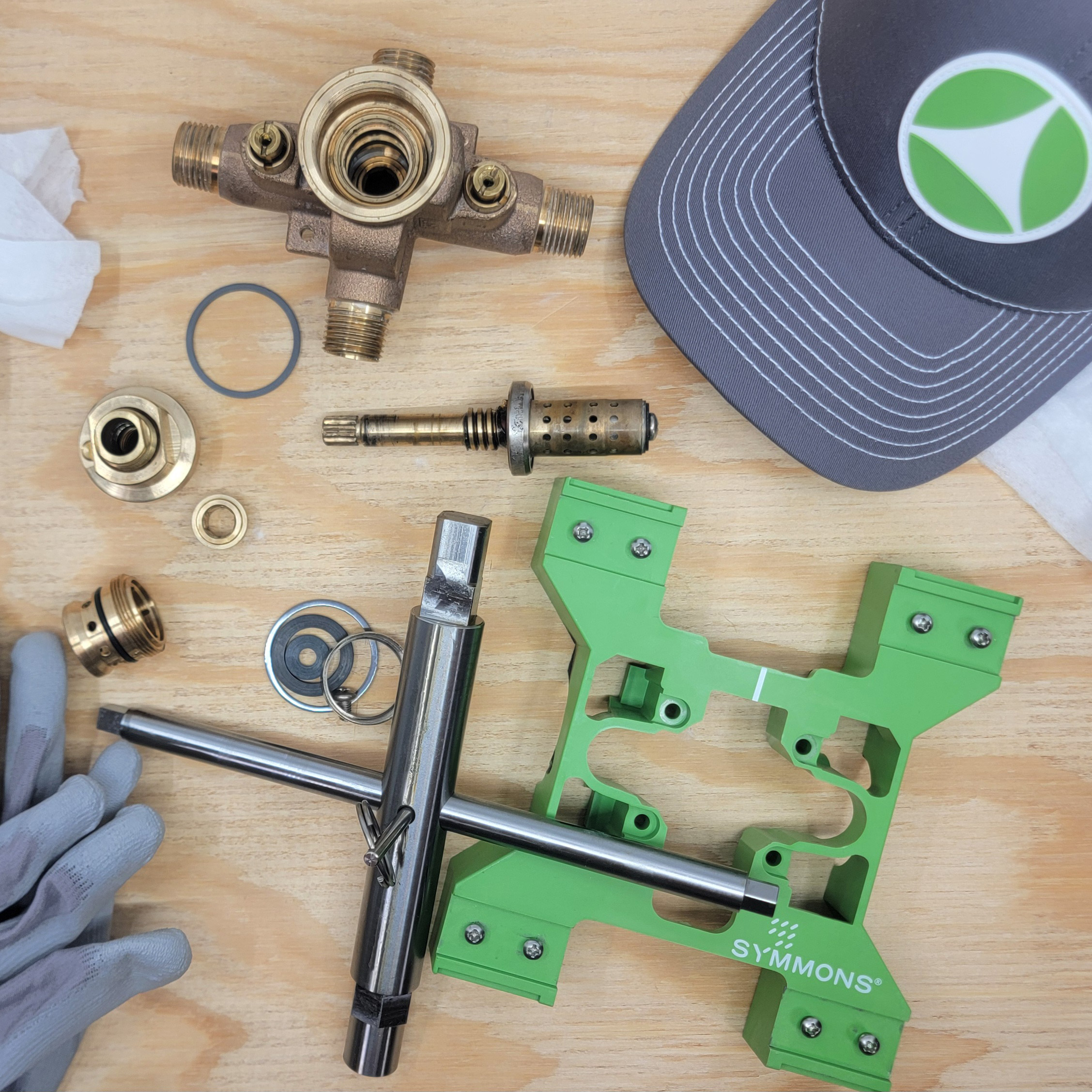

How do I replace a Temptrol® spindle, washers, and/or seats?

*Turn off the water to the valve before proceeding!

**Before removing the handle, open the valve as if you were going to take a normal shower (approximately half a turn).

CAUTION: Failure to open the valve before removing the cap assembly (TA-12A) will result in damage to the cap and spindle.

Removing valve trim

  1. Remove the plug button (T-33) from the temperature control handle (T-31).
  2. Remove the handle screw (T-32) and remove the temperature control handle.
  3. Remove the two escutcheon screws (T-28). Remove the dial [T-29(A,B,C)] and escutcheon (T-27).
  4. Remove the dome cover (T-19/20) by unscrewing in a counter-clockwise direction.

Opening valve

  1. Remove the cap assembly by using a wrench and turning in a counter-clockwise direction, the spindle assembly will come out with it. Separate the cap from the spindle by unscrewing the cap in a counter-clockwise direction.
    Replacing washers or spindle
  2. At this point you can rebuild or replace the spindle. To rebuild use the TA-9 washer kit. Hint: Place the handle on the spindle so that you can hold it stationary. Remove the hot washer screw (T-5) and the hot washer (T-6). Remove the cold washer (T-8) by using adjustable pliers turning counter-clockwise on the cold washer retainer (T-7).
    Reverse the above steps to reassemble the spindle with the new parts.

Replacing seats

  1. To replace the seats you will need to use the seat removal tools (T-35A/B) and TA-4 seat kit. Insert the larger seat tool (T-35A) into the valve until it engages in the notches of larger cold seat near top of valve. CAUTION: Use extreme care to make sure the wrench is engaged into the notches in order to prevent stripping of the notches. Remove by unthreading in a counter-clockwise direction.
  2. Next insert the smaller tool (T-35B) until it engages in the small hot seat located at the back of the valve. Remove by unthreading in a counter-clockwise direction.
  3. Reassemble with new seats from TA-4 kit, reversing steps 9-8.
  4. Tighten both seats to 15 foot-pounds of torque.
  5. Reverse the above steps 5-1 to reassemble your valve and trim. Be sure the spindle assembly is drawn close to the cap before screwing the cap back into the valve. CAUTION: Failure to do this will cause damage to the cap and spindle.

What is the warranty on Symmons Products?

Click here for Symmons Lifetime Limited Warranty.

I need to return a Symmons product. How do I do it?

If you are an end user or consumer and want to return a product that has not been installed, take it back to the original place of purchase with your invoice or receipt. If you are a wholesaler or distributor, contact us at 1-800-SYMMONS (796-6667) or email us for the appropriate Return Material Authorization. If the product is not working properly please contact us at 1-800-SYMMONS (796-6667) or email us at gethelp@symmons.com for assistance.
